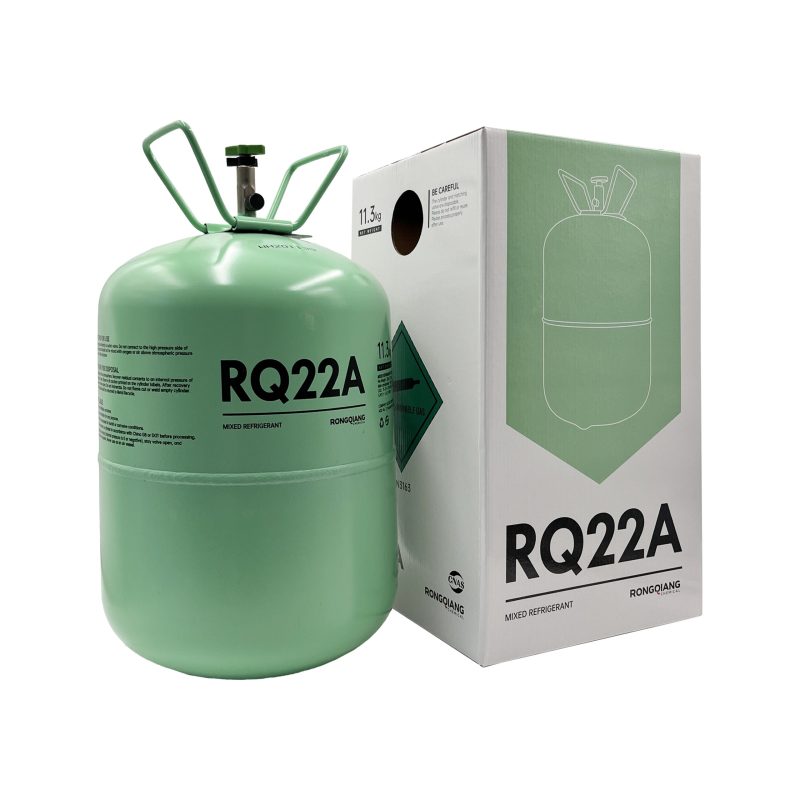

Refrigerant Gas RQ22A


RQ22A is a HFC Blend refrigerant with zero ozone destruction potential (ODP) and lower
global warming potential (GWP).It can achieve the optimal balance of performance, and
the energy efficiency can be increased by up to 12%. It is the best solution for system
performance and long-term sustainable development goals. It can be used to replace
R22 refrigerant in volumetric, direct expansion,medium temperature commercial and
industrial refrigeration systems. RQ22A refrigerant is suitable for retrofitting existing
systems to improve energy efficiency and environmental characteristics.


Refrigerant RQ22A steel cylinder is a pressure container. Keep it away from fire, heat, and direct exposure to sunlight. It is usually stored in a cool, dry, and ventilated warehouse. When handling, light loading and unloading should be carried out to prevent cylinder and valve and other accessories from damage.


● Industrial and commercial low-temperature direct expansion refrigeration system
● Food industry
● Cold chain storage
● Independent built-in system
● Existing system renovation

Molecular Mass100
Boiling Point (1atm/℃)-42
Critical Temperature (℃)84
Critical Pressure (Mpa)4.1
Critical Density (g/cm3)1.099
GWP 100 yr2902
ASHRAEA1(non-toxic and non-flammable)
